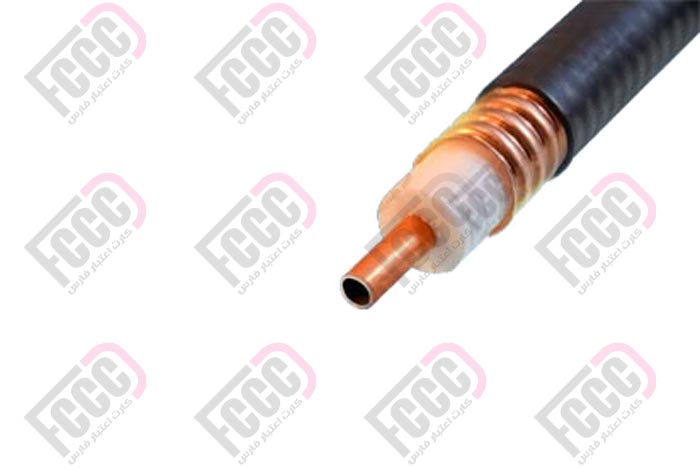

LCF 7/8” RF feeder cable
Please do not hesitate to contact us if you require any further information
Foreign Commercial Manager : +989125708854
LCF 7/8” RF feeder cable are used as a reliable backbone for cellular radio systems including GSM, PCN/PCS, CDMA, AMPS, PDC or ETACS. Low loss cables use foam with very low dielectric losses resulting in low attenuation of RF power.
Application:
- Main feed line
- Riser-rated In-Building (JFN types)
- Low Attenuation
- Complete Shielding
- Low VSWR
- Outstanding Intermodulation Performance
- High Power Rating
- Wide Range of Application
- Typical areas of application are:
feed lines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects.
| Description | ||
|---|---|---|
| Product name | LCF 7/8” RF feeder cable | |
| Construction | ||
| Copper tube 9.40±0.10 |
Material Diameter, mm |
Inner Conductor |
| Physically foamed PE 22.40±0.40 |
Material Diameter, mm |
Insulation |
| Ring corrugated copper 25.60±0.30 |
Material Diameter, mm |
Outer Conductor |
| PE or fire retardant PE 27.90±0.30 |
Material Diameter, mm |
Jacket |
| Mechanical properties | ||
| 127 254 500 |
Single Repeated Moving |
Bending radius , mm |
| 1590 | Pulling strength, N | |
| 1.35 | Crush resistance, kg/mm | |
| Store -70~+85 Installation -40~+60 Operation -55~+85 Store -30~+80 Installation -25~+60 Operation -30~+80 |
PE jacket
Fire retardant |
Recommend temperature , ℃ |
| Electrical properties | ||
| 50±2 | Impedance,Ω | |
| 75 | Capacitance, PF/m | |
| 0.19 | Inductance,μH/m | |
| 89 | Propagation velocity, % | |
| 6.0 | DC breakdown voltage, kV | |
| >5×102 | Insulation resistance, MΩ•km | |
| 91 | Peak power, kW | |
| >>120 | Screening attenuation, dB | |
| 5.0 | Cut-off frequency, GHz | |
| Attenuation and average power | ||
|---|---|---|
| Power rate @40℃,kW |
Nom. attenuation @20℃,dB/100m |
Frequency MHz |
| 23.37 | 0.36 | 10 |
| 5.05 | 1.67 | 200 |
| 3.29 | 2.55 | 450 |
| 2.42 | 3.48 | 800 |
| 2.26 | 3.70 | 900 |
| 2.19 | 3.84 | 960 |
| 2.14 | 3.93 | 1000 |
| 1.71 | 4.91 | 1500 |
| 1.54 | 5.44 | 1800 |
| 1.46 | 5.77 | 2000 |
| 1.38 | 6.09 | 2200 |
| 1.28 | 6.55 | 2500 |
| 1.15 | 7.27 | 3000 |
| • Maximum attenuation value shall be 105% of the nominal attenuation value |
||
| VSWR | ||
| ≤1.15 | 820~960 MHz | |
| ≤1.15 | 1700~2200 MHz | |
| ≤1.15 | 2300~2400 MHz | |
| Standards | ||
| Compliant | 2011/65/EU | |
