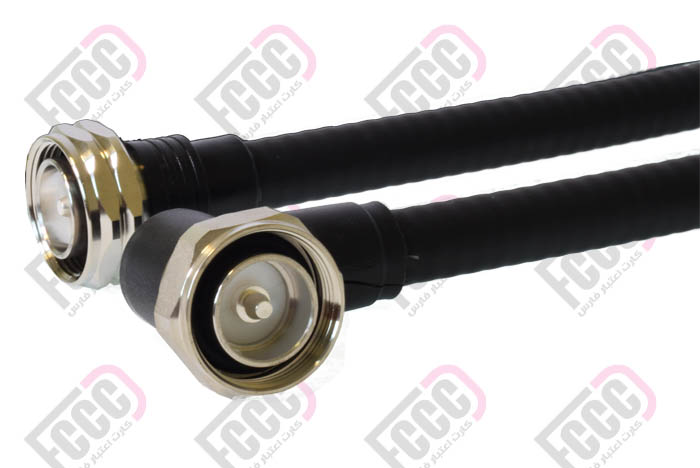

7/16-7/16 RA jumper cable

Factory fit jumper 7/16 DIN

Please do not hesitate to contact us if you require any further information

Foreign Commercial Manager : +989125708854

• Jumpers are commonly used for the connection of the RF cable lines with the antenna or with the radios.
• Cable and connectors have been soldered together in the production operation. Security of the joint and their concentric is guaranteed by a tight plastic cover.
• Quality of the product is tested according to IEC and MIL Standards. Material and product component: 1. Connector Right angle- Straight (male & female)
• body made by brass and plated by nickel
• Pin made by brass and plated by silver 2. 1/2″ super flexible coaxial cable (length of cable depending on customer request )

Technical Specification
1/2 Super Flexible Cable Type
Factory-Fit (Standard) Jumper Type
3 (9.8) , Based on customer requirements Length, m (ft)
7-16 DIN Straight (Male/Female) or Right Angle Connector A
Brass, silver plated Center Contact Connector A
Brass, nickel plated Outer Contact Connector A
Hexagon nut, Nickel plated Coupling Not Connector A
7-16 DIN Straight (Male/Female) Connector B
Brass, silver plated Center Contact Connector B
Brass, nickel plated Outer Contact Connector B
Hexagon nut, Nickel plated Coupling Not Connector B
PTFE Dielectric
Silicone rubber Gasket
IP68 Sealing class
Black Polyethylene, Jacket
mm (in) 125 (5) Minimum Bend Radius
<1.1 @ 1710 – 2200 MHz VSWR (Return Loss, dB), typical
-160 (typical) Intermodulation, 3rd Order, dBc
-40 to 60 (-40 to 140 ) Installation Temperature, °C(°F)
-50 to 85 (-58 to 185 ) Operation Temperature, °C(*F)
-70 to 85 (-94 to 185 ) Storage Temperature, °C(*F)
